About specification for 304 stainless steel material :

stainless steel coil tube
stainless steel tube coil
stainless steel coil tubing
stainless steel coil pipe
stainless steel coil tube suppliers
stainless steel coil tube manufacturers
stainless steel pipe coil

Introduction

Grade 304 is the standard “18/8″ stainless; it is the most versatile and most widely used stainless steel, available in a wider range of products, forms and finishes than any other. It has excellent forming and welding characteristics. The balanced austenitic structure of Grade 304 enables it to be severely deep drawn without intermediate annealing, which has made this grade dominant in the manufacture of drawn stainless parts such as sinks, hollow-ware and saucepans. For these applications it is common to use special “304DDQ” (Deep Drawing Quality) variants. Grade 304 is readily brake or roll formed into a variety of components for applications in the industrial, architectural, and transportation fields. Grade 304 also has outstanding welding characteristics. Post-weld annealing is not required when welding thin sections.

Grade 304L, the low carbon version of 304, does not require post-weld annealing and so is extensively used in heavy gauge components (over about 6mm). Grade 304H with its higher carbon content finds application at elevated temperatures. The austenitic structure also gives these grades excellent toughness, even down to cryogenic temperatures.

Key Properties

These properties are specified for flat rolled product (plate, sheet and coil) in ASTM A240/A240M. Similar but not necessarily identical properties are specified for other products such as pipe and bar in their respective specifications.

Composition

Typical compositional ranges for grade 304 stainless steels are given in table 1.

Table 1. Composition ranges for 304 grade stainless steel

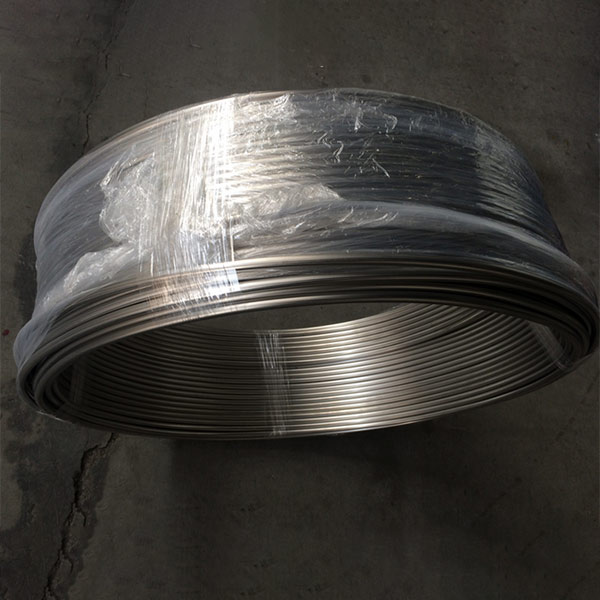

★Stainless steel coiled tubes coiled tubing specification

• Standards: ASTM A269/A249 standard
• Grade: TP304, TP316L 304 316 310S 2205  825 625
• Trade Name : SS304 Coiled Tubes, SS316 Coiled Tubes, Duplex Coiled Tubes, Monel 400 Coiled Tubes, Hastelloy Coiled Tubes, Inconel coiled Tubes, 904L Coiled Tubes, Seamless Coiled Tubes, Welded Coiled Tubing
• Out diameter:6.52-19.05mm
• Think:0.2-2MM
• Tolerance: OD± 0.1mm, wall thickness: ±10%, length: ±5mm
• 6.Length:300-3500M/coil

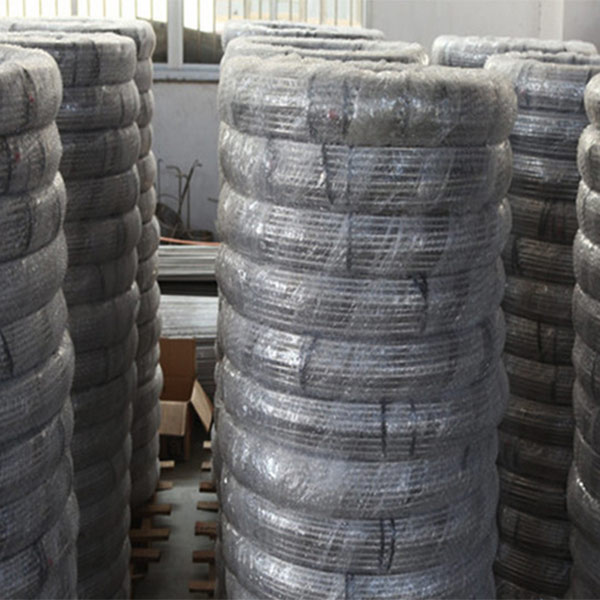

• packaging:iron pallet ,wooden pallet ,poly bag
• application : refrigeration equipment, evaporator, gas liquid delivery, condenser, beverage machine
• 4.  state:soft / half hard / soft bright annealing
• 5. Specifications : outer diameter 6.52mm-20mm, wall thickness: 0.40mm-1.5mm
• Tolerance range: diameter: + 0.1mm, wall thickness: + 10%, length: -0/+6mm
• Length:800-3500M or  according to customer requirements.
• Product advantages: surface polishing and fine, uniform wall thickness, tolerance precision etc..
• Commonly Size of stainless steel coiled tube: we can product them as your request.

Table 1. Composition ranges for 304 grade stainless steel

Mechanical Properties and composition

Grade		C	Mn	Si	P	S	Cr	Mo	Ni	N
304	min. max.	- 0.08	- 2.0	- 0.75	- 0.045	- 0.030	18.0 20.0	-	8.0 10.5	- 0.10
304L	min. max.	- 0.030	- 2.0	- 0.75	- 0.045	- 0.030	18.0 20.0	-	8.0 12.0	- 0.10
304H	min. max.	0.04 0.10	- 2.0	- 0.75	-0.045	- 0.030	18.0 20.0	-	8.0 10.5	-



Grade	Tensile Strength  (MPa) min	Yield Strength 0.2% Proof (MPa) min	Elongation  (% in 50mm) min	Hardness
				Rockwell B  (HR B) max	Brinell (HB) max
304	515	205	40	92	201
304L	485	170	40	92	201
304H	515	205	40	92	201
304H also has a requirement for a grain size of ASTM No 7 or coarser.

▼Stainless steel coiled tubes/coil tubing common size range



Size of Stainless steel Coil Tube
ITEM	Grade	Size (MM)	Pressure (Mpa)	Length (M)
1	316L、304L、304 alloy  625 825 2205 2507	1/8″×0.025″	3200	500-2000
2	316L、304L、304 alloy  625 825 2205 2507	1/8″×0.035″	3200	500-2000
3	316L、304L、304 alloy  625 825 2205 2507	1/4″×0.035″	2000	500-2000
4	316L、304L、304 alloy  625 825 2205 2507	1/4″×0.049″	2000	500-2000
5	316L、304L、304 alloy  625 825 2205 2507	3/8″×0.035″	1500	500-2000
6	316L、304L、304 alloy  625 825 2205 2507	3/8″×0.049″	1500	500-2000
7	316L、304L、304 alloy  625 825 2205 2507	1/2″×0.049″	1000	500-2000
8	316L、304L、304 alloy  625 825 2205 2507	1/2″×0.065″	1000	500-2000
9	316L、304L、304 alloy  625 825 2205 2507	φ3mm×0.7mm	3200	500-2000
10	316L、304L、304 alloy  625 825 2205 2507	φ3mm×0.9mm	3200	500-2000
11	316L、304L、304 alloy  625 825 2205 2507	φ4mm×0.9mm	3000	500-2000
12	316L、304L、304 alloy  625 825 2205 2507	φ4mm×1.1mm	3000	500-2000
13	316L、304L、304 alloy  625 825 2205 2507	φ6mm×0.9mm	2000	500-2000
14	316L、304L、304 alloy  625 825 2205 2507	φ6mm×1.1mm	2000	500-2000
15	316L、304L、304 alloy  625 825 2205 2507	φ8mm×1mm	1800	500-2000
16	316L、304L、304 alloy  625 825 2205 2507	φ8mm×1.2mm	1800	500-2000
17	316L、304L、304 alloy  625 825 2205 2507	φ10mm×1mm	1500	500-2000
18	316L、304L、304 alloy  625 825 2205 2507	φ10mm×1.2mm	1500	500-2000
19	316L、304L、304 alloy  625 825 2205 2507	φ10mm×2mm	500	500-2000
20	316L、304L、304 alloy  625 825 2205 2507	φ12mm×1.5mm	500	500-2000

▼Our advantages:

We are a stainless steel coiled tube/pipe manufacturer.

We can control the quality of pipe by ourselves.

The length of the pipes  is more than 3500M/Coil.

▼Description:

Our company has three production line of stainless steel coiled tube ,stainless steel pipe ,we have exporting experience for more than ten years ,the bending, stretching, saw cutting, stamping, polishing and so on a series of processing equipment , our stainless steel product widely used in bathroom pendant, hanger accessories, hardware, and condensation water heating equipment, hotel supplies and so on. our company sincerely hope that domestic and foreign customers to provide drawings or samples.

▼Widest range of Stainless Steel 304 Seamless, Welded Pipes & Tubes in shandong China.

Schedule 9.52mm Type 304 Stainless Steel Pipe	Schedule 40 Type 304 Stainless Steel Pipe
ASTM 5564 1/8” Seamless Tubing coiled tubing	Polished 304 Stainless Steel Tubing
304 Stainless Steel Threaded Pipe	Susd 30304 Stainless Steel Rectangular Tube
JIS SUS304 Seamless Tubes	304 SS Round Tube suppliers
SS 304 Welded Tubes for oil and Gas	AMTM 5560 Seamless Tube suppliers
ASTM A312 TP304 Coiled Tubing	Stainless Steel Inox 304 Capillary Tubing
ASTM A312 Gr TP 304 Aerospace tubes	AMS 5566 High Pressure Tube
SA213 TP 304 Sighting Tube	Type 304 Stainless Steel Polished Pipes
ASTM A312 TP304 Elliptical and Oval Tubes	AMS 5567 Rectangular Tube
ASTM A213 TP304 Condenser Tube	AMS 5563 1/4” *0089”Seamless seamless steel  tubes
ASTM A269 TP304 straight tube boiler	AMS 5563 Welded furnace tube
ASTM A249 TP304 Mirror Tube	AMS 5564 1/8”  Welded Tubing, High-Pressure Hydraulic
UNS S30400 Pitot Tube stockist	Stainless Steel 304 Seamless Round Tubing
ASTM A358 TP304 Polished Tubing	304 Stainless Steel Ornamental Tube
Stainless Steel 304 Exhaust Pipe	304 Stainless Steel Spiral Pipe
ASME SA213 TP304 Perforated Tube	WERKSTOFF NR. 1.4301 Flexible Tube
SA 688 TP304 Finned Tube	SS 304 seamless steel coiled Tube
Din 1.4301 AISI 304 Perforated Exhaust Tube	Stainless Steel 304 Hypodermic Tubing
Din W.-Nr. 1.4301 Aisi 304 Corrugated Tube	SS 304 Honed Tube
Material 1.4301 Aisi 304 Slotted Handrail Tube	SS 304 Thin Wall Tube
ASTM 3/8”*0.035” stainless steel coiled tube	304 Stainless Steel Threaded Pipe
Stainless Steel 304 Ornamental Pipe	Stainless Steel 304 Fin Tube / Finned Tube
S30400 Stainless Steel U Shaped Tube	304 Stainless Steel Square Tube Mirror Finish
Din 1.4301 Material Vacuum Tube	ASTM 6.35*1.24 stainless steel coiled tubing
304 Stainless Steel Rectangular Pipe	304 Stainless Steel Hypodermic Tubing for Medical Needle
Ultra-High Purity Electropolished Stainless Steel 304 Tube	Thin Wall Stainless Steel 304 Tube
Din 1.4301 Stainless Steel Annealed Tubing	304 Stainless Steel Coil Tubing Heat Exchanger
SAE J405 Uns S30400 Thin Wall Tubing	304 Stainless Steel Metric Tubing
304 Stainless Steel Seamless Square Tubing	Large Diameter 304 Stainless Steel Tube
304 Stainless Steel Lined Pipe	Corrugated 304 Stainless Steel Tube for Gas and oil
ASTM A269 stainless steel coiled tubing	304 Stainless Steel Instrumentation Tubing
9.52*1.24MM Coiled Tubing	304 Stainless Steel Square Tubing
High-pressure 304 Stainless Steel Water Pipe	Stainless Steel 304 Hexagonal Pipe
Jis 304 Stainless Steel Coil Tubing	Stainless Steel 304 Boiler Tube

---
