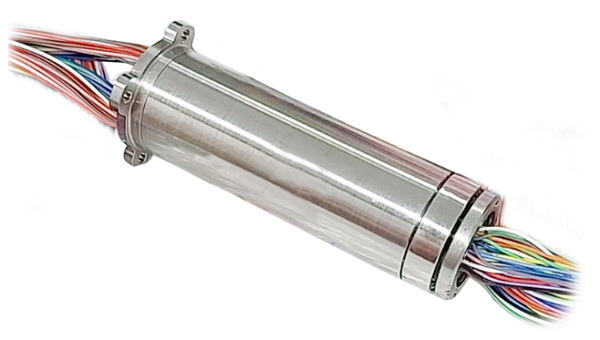

ADSR-JC-68 Defense Miniature Slip Ring Capsule

Introduction

ADSR-JC-68 defense miniature slip ring capsule is designed for airborne camera platforms, inertial navigation systems and other defense high precision systems. It provides 68 ways 2A packaged in an envelope of 22mm diameter and 77mm length, with the advantages of less than 20mΩ electrical noise and up to 10 Millions revolutions lifetime. All components are processed according to military standards. High reliability and meets military vibration and shock requirements.

Product Details

Product Tags

Features

 ■ 68 ways 2A

■ 22mm diameter and 74mm length

■ Up to 300 rpm operation

■ Max 20mΩ electrical noise

■ 10 Million revolutions lifetime

■ Precise, tight packaging capabilities for meeting stringent design criteria

■ High reliability, meets military shock and vibration requirements

Typical Applications

 ■ Gimballed pitch, roll and yaw axes of inertial navigation systems

■ Airborne camera platforms

■ Unmanned aerial vehicles(UAV)

Specification

Electrical Material
Circuits 68 Contact Material Gold on gold
Rating Voltage / Current 48VDC / 2A Lead Wires 450mm AWG #28 wires
Insulation Resistance ≥250MΩ / 500VDC Housing aluminium alloy
Electric Noise ≤20m Ω Environmental
Dielectric Strength 200VAC / 50Hz / 60s Working Temperature -40 ℃~+80℃
Mechanical Storage Temperature -45 ℃~+85℃
Operating Speed 300 rpm Humidity 95% RH
Torque <0.2 N.cm Protection IP54
Life 10 Million revolutions

ADSR-JC-68 Dimensions
