Double-sided laminated foil insulation Facing

Introduction

The laminated insulation facing is often used to limit vapor drive with the ultimate goal of preventing condensation. Insulation facing materials are used to minimize vapor drive between the ambient air outside the insulation and the surface of the duct, subsequently preventing condensation from forming on the surface of the duct or the surface of the insulation.

Product Details

Product Tags

Feature

Double-sided reflective insulation, with good insulation results, high vapor barrier power and sound insulation properties.

Application

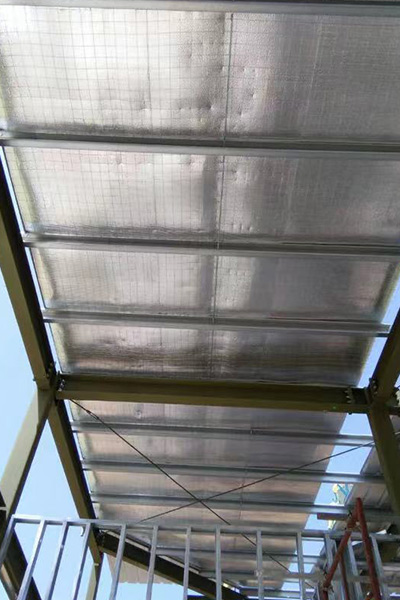

Used for re-bonding various insulation materials, and as the heat insulation and vapor barrier layer for air ducts in steelstructure buildings or central air conditioning systems. May also be used as sound and heat insulation material for high-rise buildings, theaters and concert halls,etc.

For the glass wool ,rock wool ,mineral wool and other thermal insulation materials ,heat-sealing veneer and vapor barrier layer,for cotton,and cotton liner online heat sealing veneer,to meet HVAC duct,cold and warm water pipe Adiabatic and vapor bamer needs and insulation requirements for steel construction.

a
xx

There are different lines for different use scenarios .

Good sealing effect

Ideal for sealing joints/seams against moisture and vapor on foil jacketing insulation. Suitable for many other permanent sealing, holding, splicing or masking applications requiring the protection offered by a foil backing .

Product Code

Product Construction

Feature

DFC-1001A

7micAluminumfoil/PE/8*12/100cm2,Three-way fiberglass mesh/60gKraft/PE/7micAluminum foil

Light weight, three-way fiberglass mesh, double-sided reflective insulation, with good insulation results, high vapor barrier power and sound insulation properties.

DFR-1001A

7mic Aluminum Foil/ FR Glue / 12.5×12.5mmtwo-way fiberglass mesh /Natural Kraft:60gsm/ FR Glue/ 7mic Aluminum Foil

Light weight, two-way fiberglass mesh, double-sided reflective insulation, with good insulation results, high vapor barrier power and sound insulation properties, as well as some flame retardance.

If you need our products, please call our company, we will timely give tape solutions you,and help you to solve the problem.

Find is to find the tape solution, contact us!
