Marine-Grade 600D 3 Bow Bimini Top Cover in Different Size for Boats

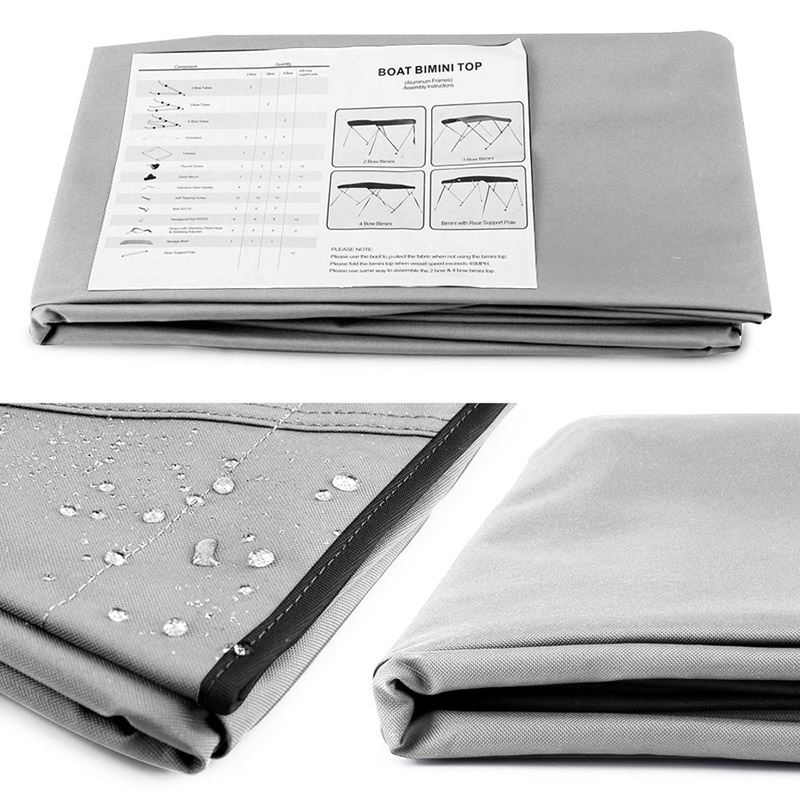

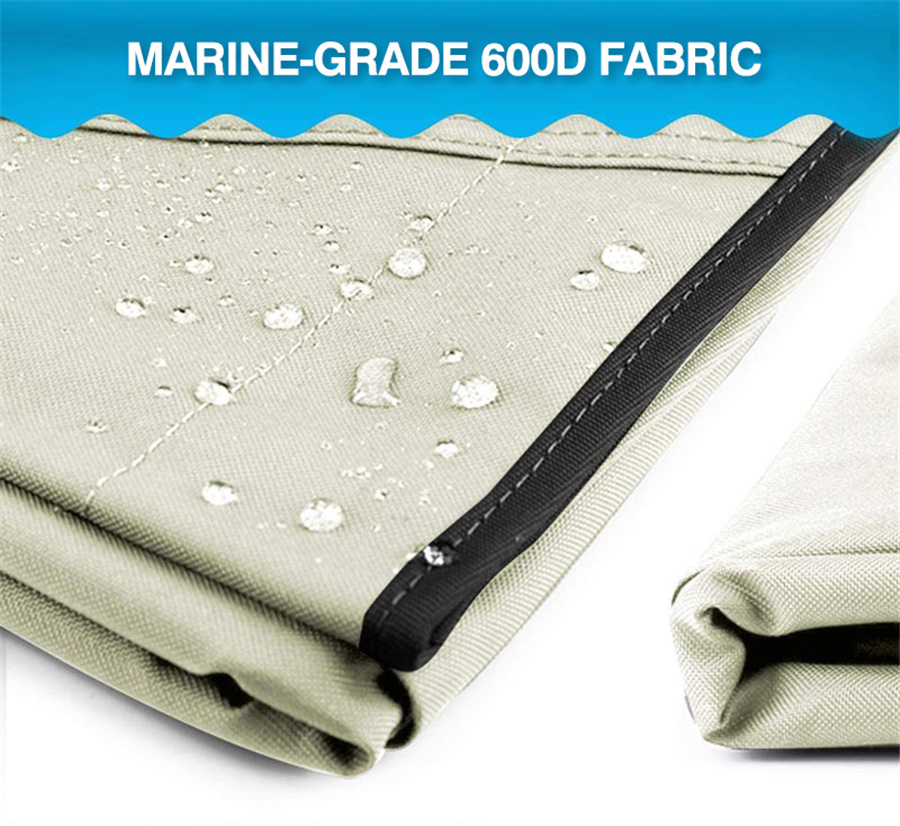

● Material: The boat Bimini top made from Marine-grade 600D polyester canvas and 600D solution dyed fabric with double overlapped stitching.

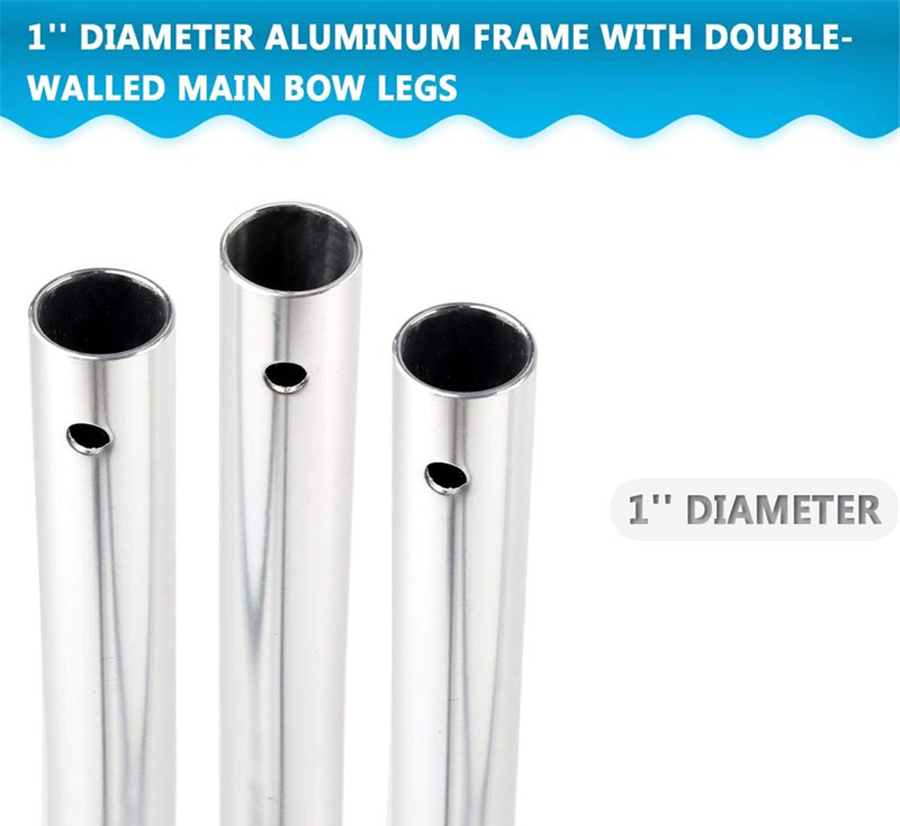

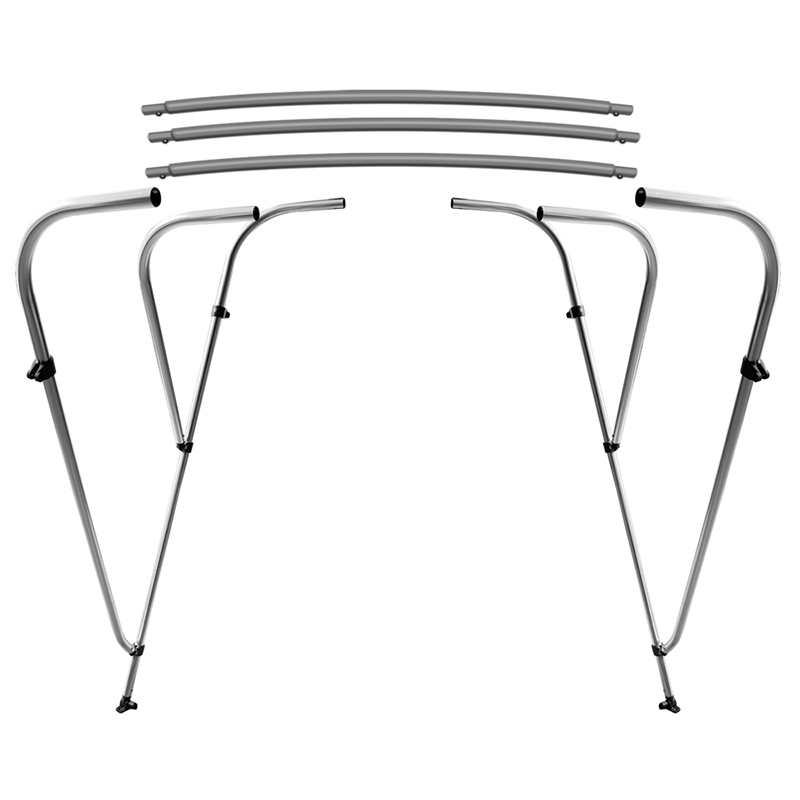

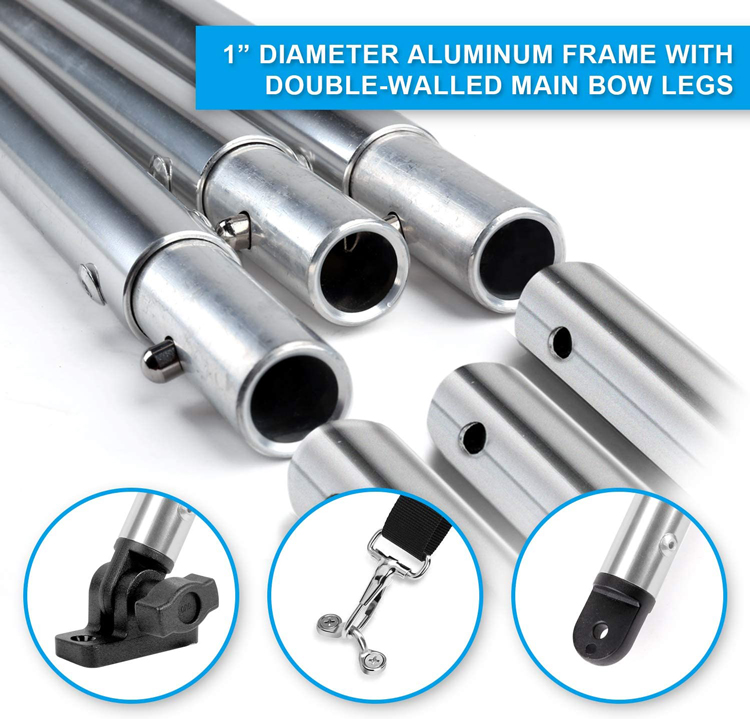

● 1” diameter aluminum frame with double-walled main bow legs for maximum strength and free quick release mounts. 2 adjustable nylon straps for the front and 2 rear support pole.

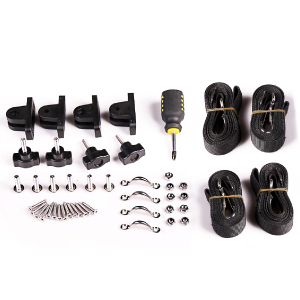

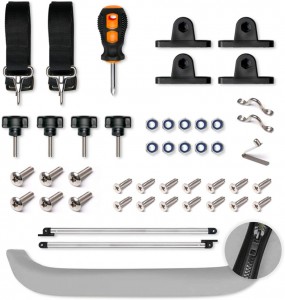

● Package: We have 2 models for this marine-grade 600D 3 Bow Bimini Top. Two of them are included all stainless steel mounting hardware, color coordinated zippered storage boot and assemble instructions. But the different is:
Model #1: With 4 adjustable straps;

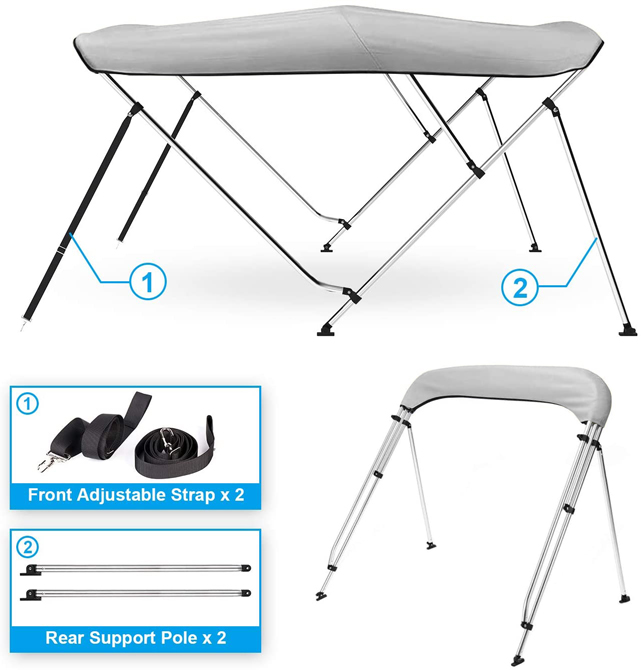

Model #2: With 2 front adjustable straps and 2 rear support poles.
Model #1
Model #2

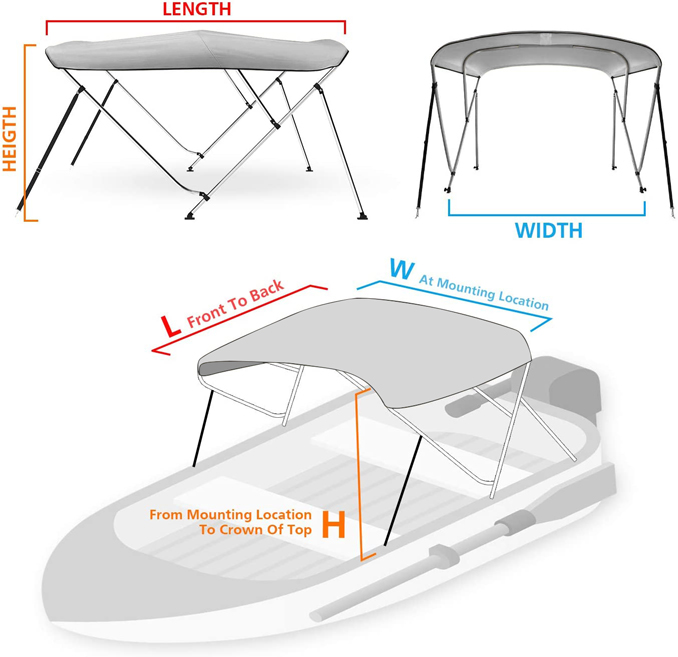

How to measure your boat to choose the right size for Bimini top?
● 1. Using a tape measure and decide which length the top will provide about the desired amount of shade coverage.
● 2. The pivotal mounting point will be approximately at the center point of the top on each side of your boat.
● 3. After this, measure the distance between these mounting points then you can determine the width you need.
● 4. While standing inside the boat, measure from the pivotal mounting point straight up to determine the desired height.
● 5. We suggest you choose a larger size if the width of your boat you measured just reaches the size critical value.
Note: Bimini Top should never be open when the speed of your boat is over 25 MPH!
|
Size |
XS |
S |
M |
L |
XL |
2XL |
|
Measure for Bimini top |
6′L x 46″H x 54″-60″W |
6′L x 46″H x 61″-66″W |
6′L x 46″H x 67″-72″W |
6′L x 46″H x 73″-78″W |
6′L x 46″H x 79″-84″W |
6′L x 46″H x 85″-90″W |
More available color for choose:

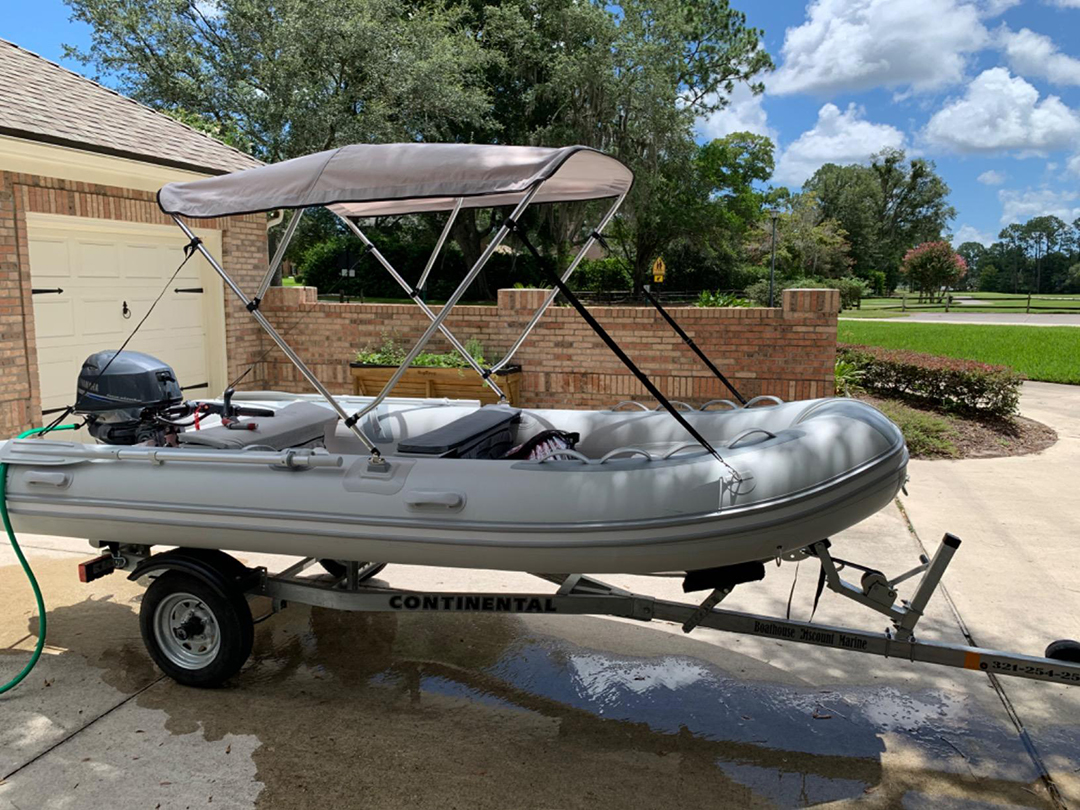

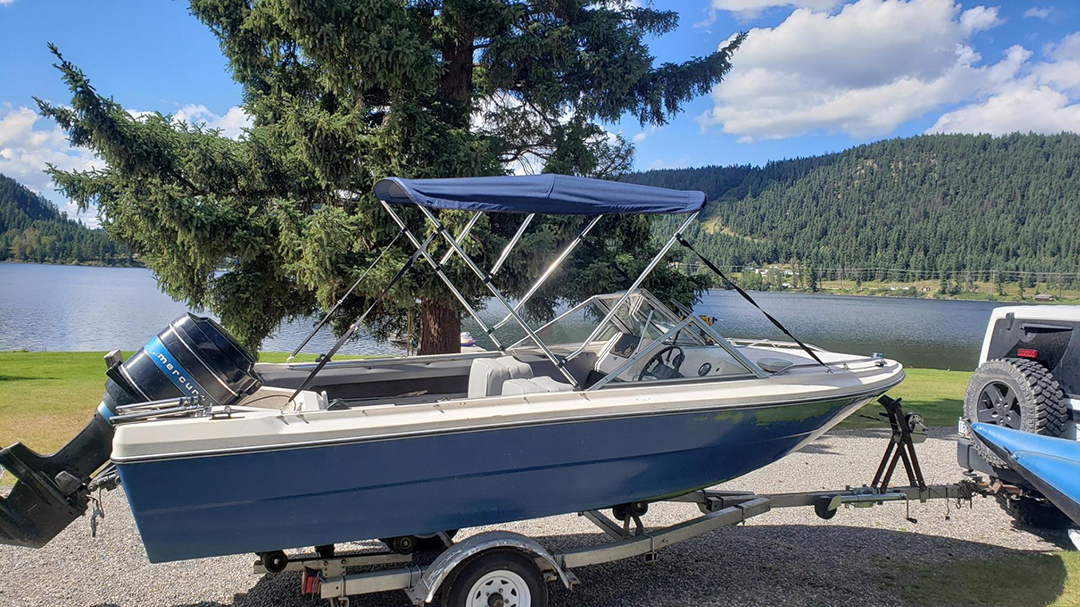

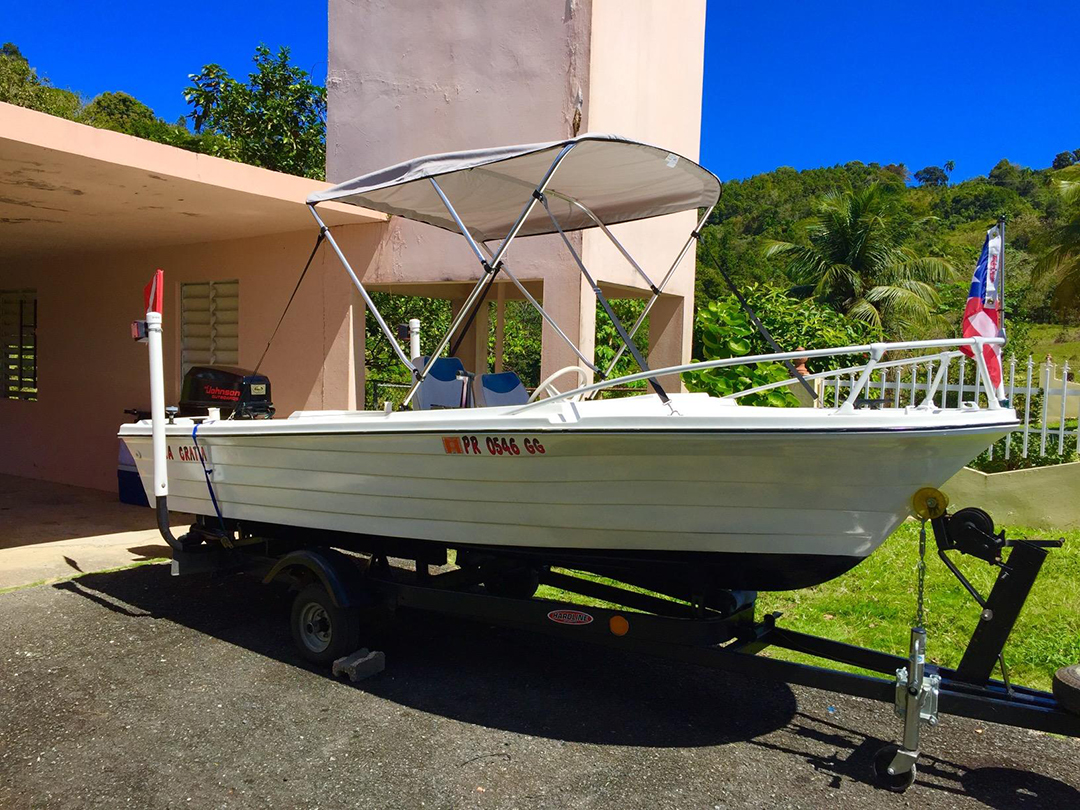

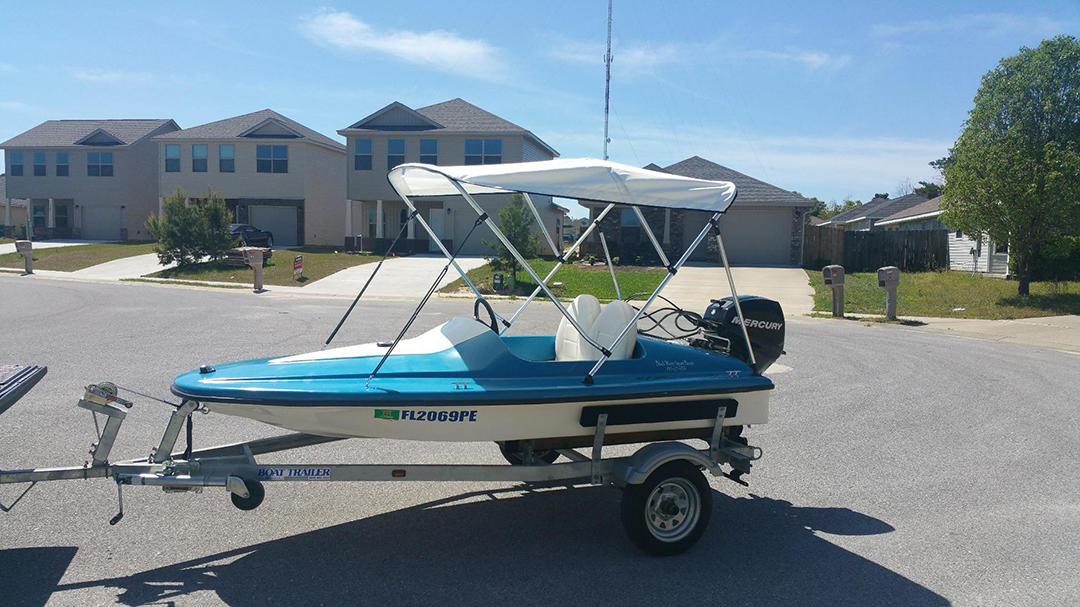

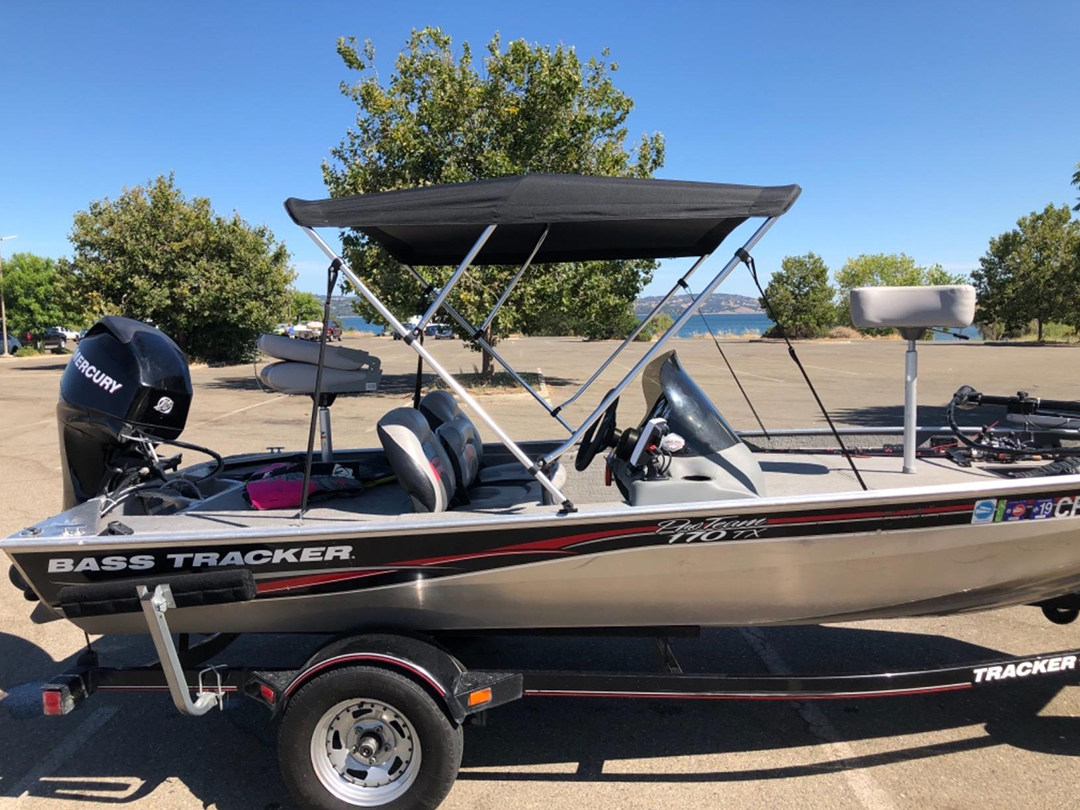

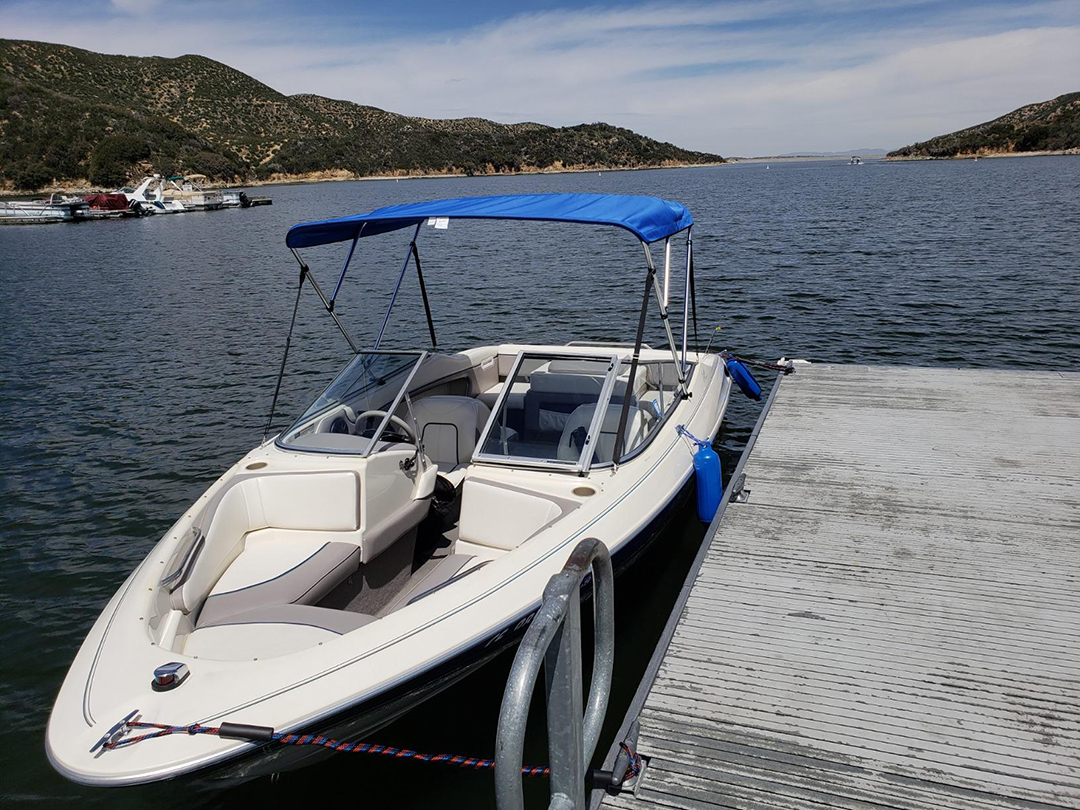

Photos from customer reviews
