They may need more than 200 circuits for power supply and various signals transmission in limited space, and more importantly, they need meet certain military environmental requirements: temperature, humidity, shock and vibration, thermal shock, altitude, dust/sand, salt fog and spray etc.

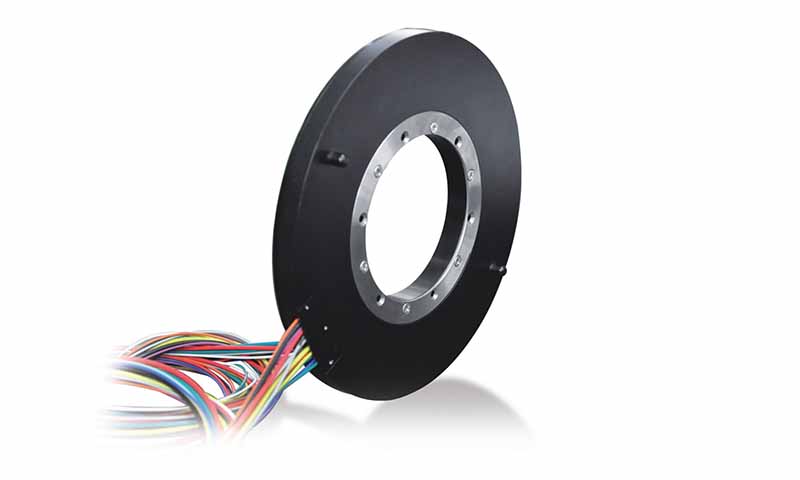

Both civil and military use radar electrical slip rings can be combined with single/ dual channels coaxial or waveguide rotary joints or combination of these two types. Cylindrical shape and platter shape with a hollow shaft to suit for vehicle-mounted radar system or radar pedestal available.

Features

  ■ Can integrated with 1 or 2 channels coax/waveguide rotary joint

■ Transfer power, data, signal and RF signal through an integrated package

■ A variety of existing solutions

■ Cylindrical and platter shape optional

■ Custom cutting edge military use solutions available

Advantages

  ■ Flexible combination of power, data and RF signal

■ Low resistance and low crosstalk

■ High shock and vibration capabilities

■ Easy to use

■ Long lifetime and maintenance-free

Typical Applications

  ■ Weather radar and air traffic control radar

■ Military vehicle-mounted radar systems

■ Marine radar systems

■ TV broadcast systems

■ Fixed or mobile military radar systems
