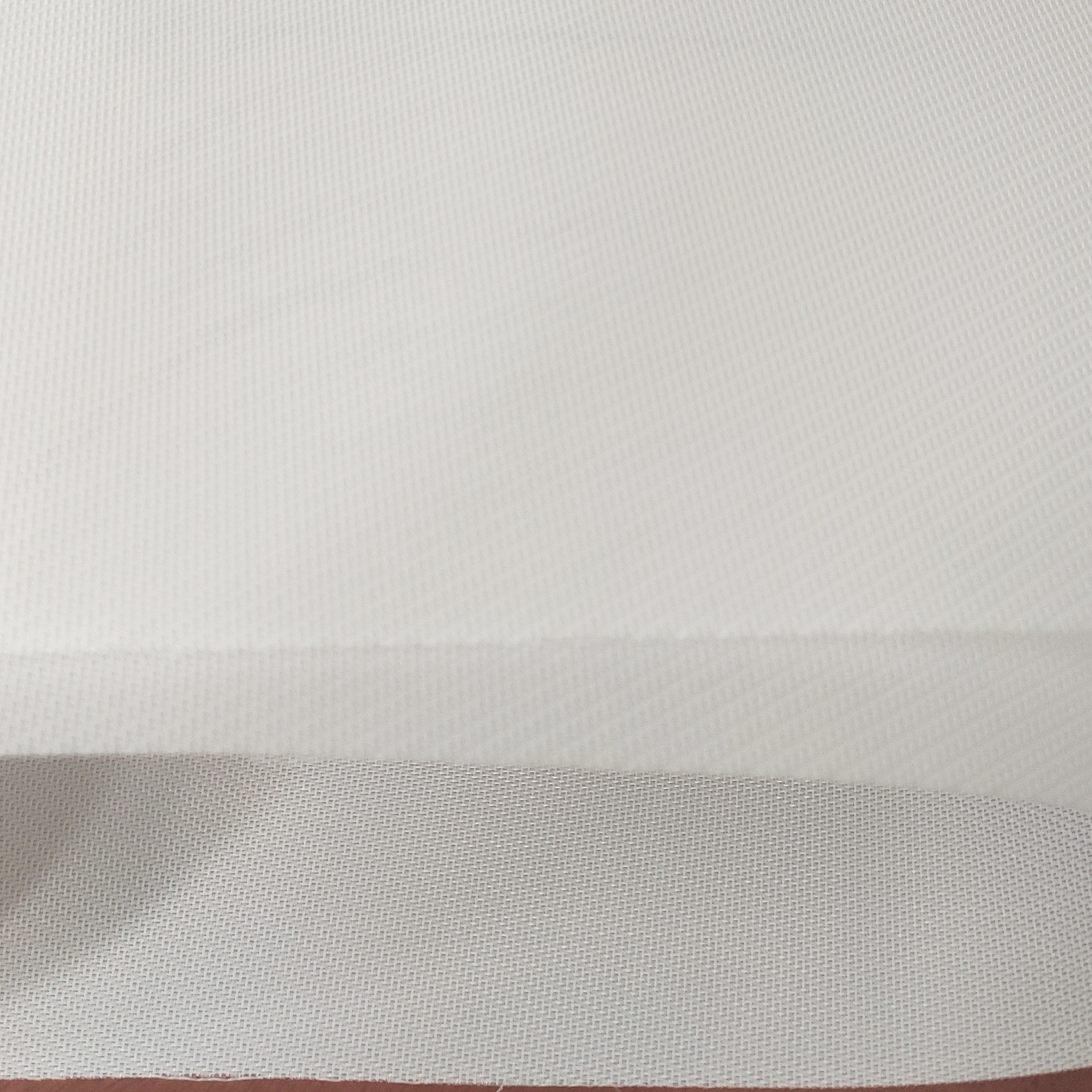

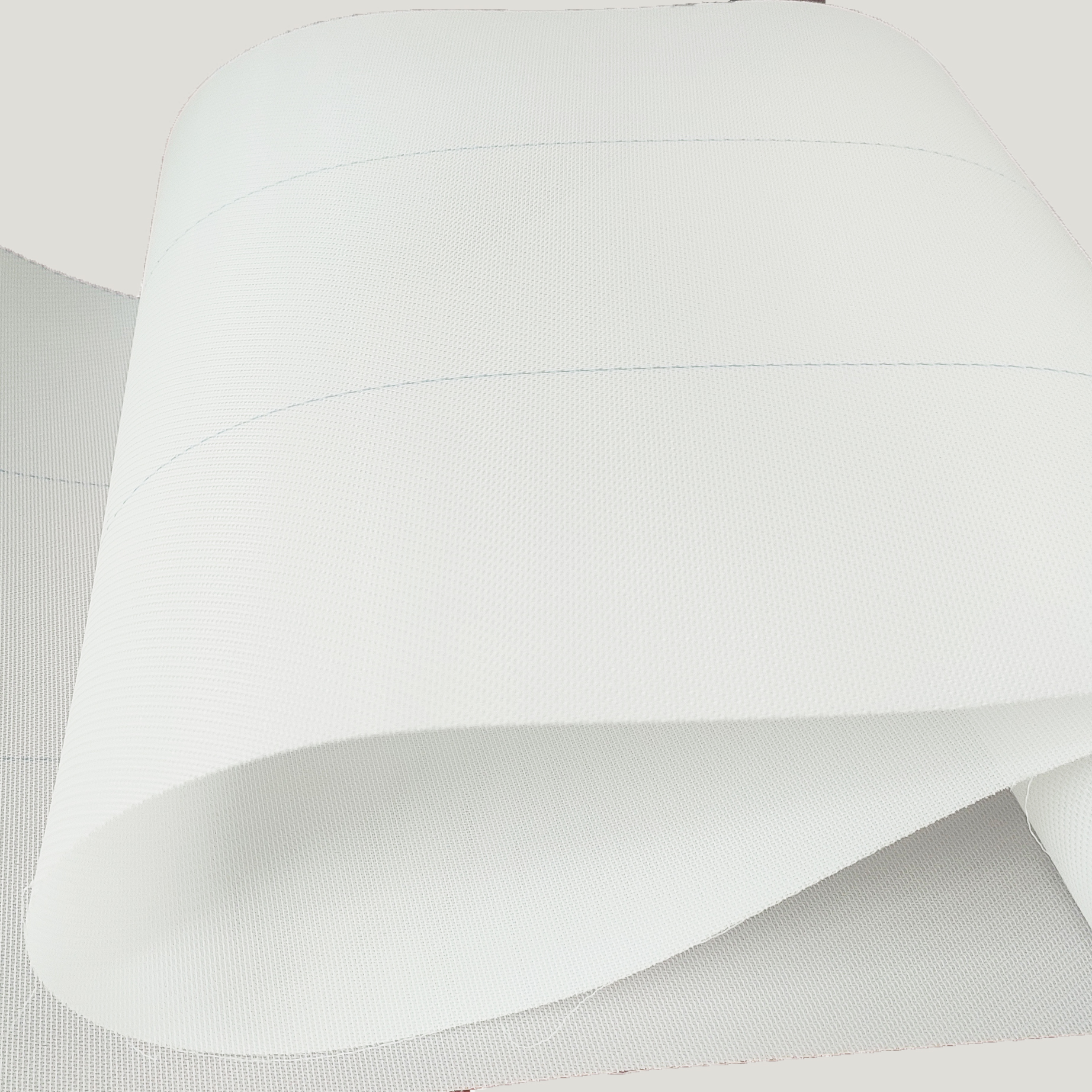

16-shed double and a half layer polyester forming fabric :

On the basis of double layer , it use 8- shed attached supporting weft as weaving type clinging to paper surface, thus it can increase the retention rate of fiber and filler ,it use thick diameter monofilament as bottom weft clinging to paper machine and use the manner of 16-shed as one group longspan double warp press weft ,then it increase the stiffness of the fabric and bowedweft of bottom weft and increase contact surface for fabric and dewatering clements for paper machine. It mainly run on medium-high speed machines,and has flat structure surface with stable performance and long service life potential etc. Apply on these paper grades,such as corrugated paper,Kraft-liner paper, Coated duplex board and so on.
