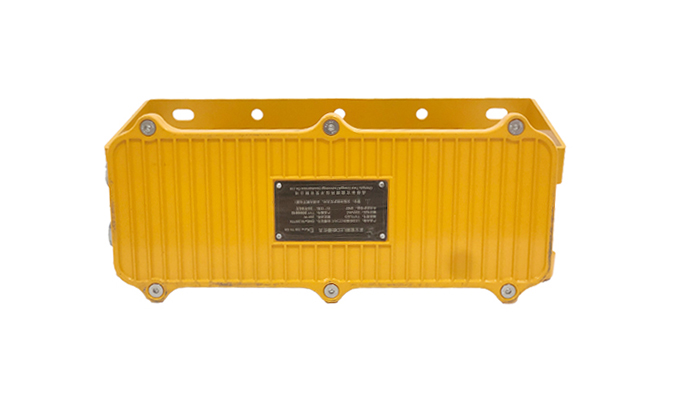

Square Alluminium Alloy explosion proof flood light
Parameter
| Model | TY/FLED301 | TY/FLED302 |
| Rated Power | 200W/300W/400W | 120W/160W/200W |
| Working Voltage | AC110V-280V DC12-42V 50-60HZ | |
| Power Factor | 0.95 | |
| IP Grade | IP67 | |
| Anti-corrosion Grade | WF2 | |
| Color Temperature | 5500K-6500K | |
| Irradiation Angle | 120°/140° | |
| Introducing Device | G3/4 inlet specification, suitable for φ8mm-φ11mm | |
| Installation Height | Different power can be installed at a height of 4.5 meters -40 meters | |
| Ex Marking | Exd IIBT4 Gb | |
| Executive Standard | GB3836.1/GB3836.2/IEC60079-0/IEC60079-1/EN60079-0/EN60079-1 | |
|
Light Source |
Rated Power(W) |
Luminous Flux（Lm) |
Life Span（h) |
|
LED |
40 |
5500 |
100000 |
|
LED |
50 |
6600 |
100000 |
|
LED |
60 |
7700 |
100000 |
|
LED |
80 |
11000 |
100000 |
|
LED |
100 |
13200 |
100000 |
|
LED |
120 |
13200 |
100000 |
|
LED |
150 |
16500 |
100000 |
|
LED |
200 |
22000 |
100000 |
|
LED |
300 |
33000 |
100000 |
|
LED |
400 |
44000 |
100000 |
Features
- The light source and electrical appliances all adopt international famous brands, with reliable performance, and the brightness is about 20% higher than similar products.
- The average service life of the bulb is more than 10,000 hours, eliminating the trouble and inconvenience of frequent bulb replacement.
- It adopts two-cavity explosion-proof structure, which is safer to use in flammable and explosive dangerous places.
- The shell is made of lightweight alloy material and is treated by electrostatic spraying, which is wear-resistant, corrosion-resistant, waterproof and dust-proof, and can be used in harsh environments.
- The lamp holder protective net cover can be selected according to customer needs.
Application
Summary

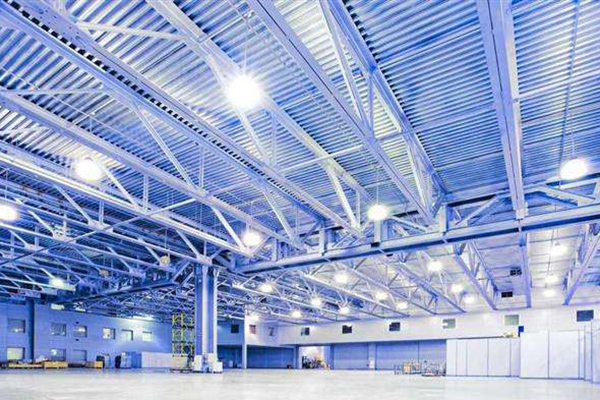

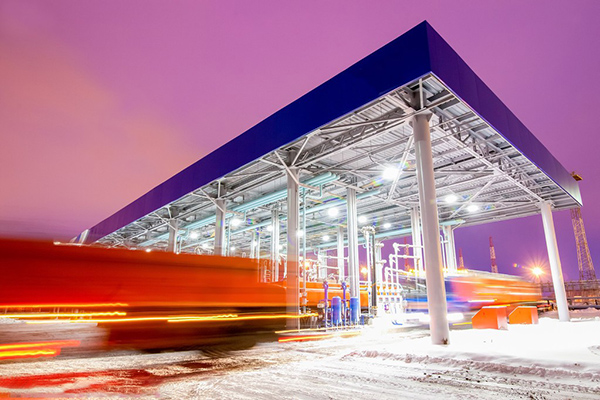

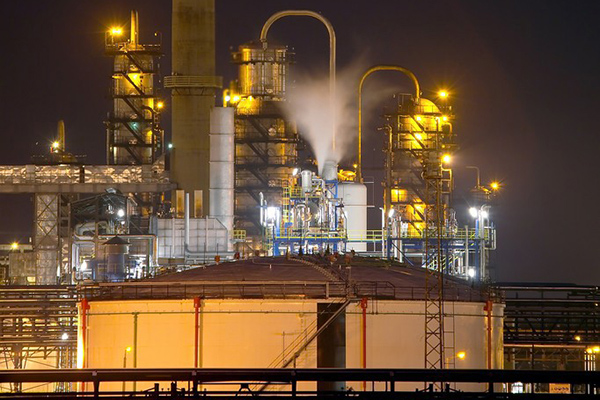

This product is suitable for fixed lighting in flammable and explosive places such as petrochemical plants, oil platform gas stations, oil pump rooms, transfer stations, etc.; Zone 1 and Zone 2 explosive gas environment.
