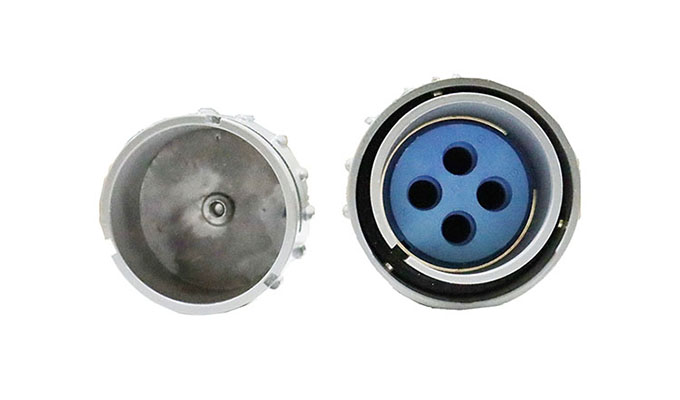

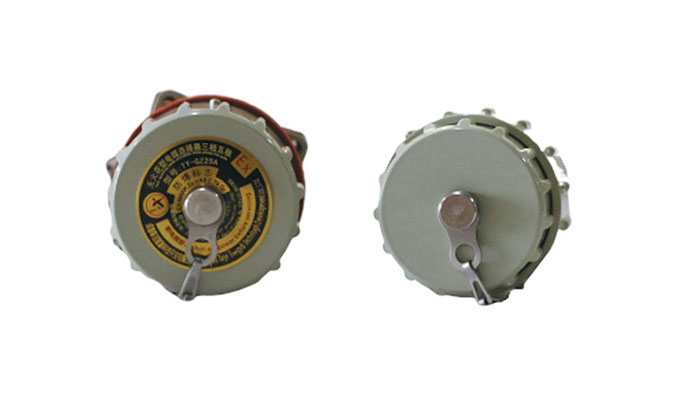

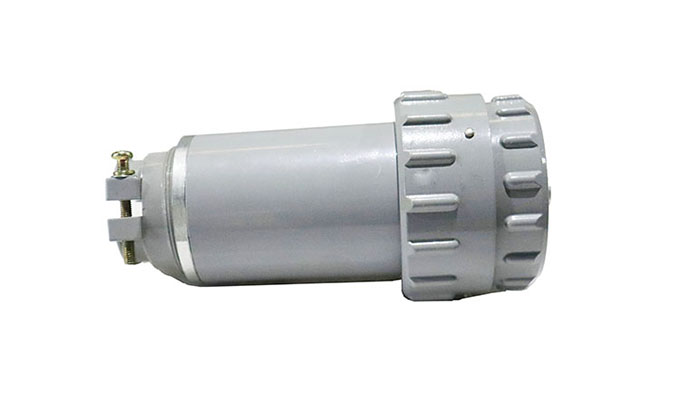

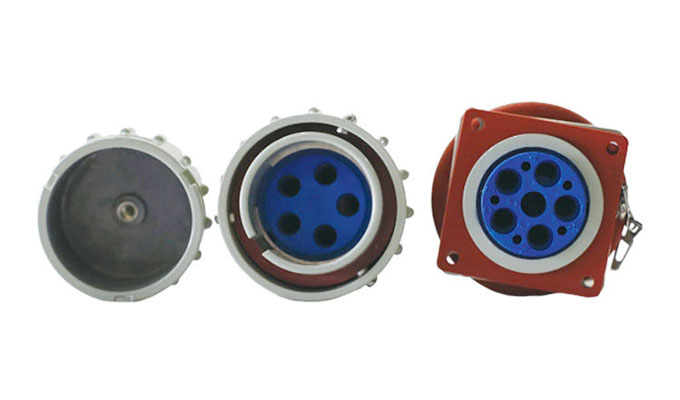

YT/YZ/GZ IP54 1/3/4/5 pin 250v/400v Explosion Proof Socket and Plug
Parameter
| Ambient Temperature | -20℃ ~ +50℃ | |
| Working Voltage | AC400V | AC500V |
| Working Current | 15A/16A/25A/60A | 100A/150A/200A/300A |
| Withstand Voltage | 2800VAC | |
| Insulation Resistance | >100MΩ | |
| Contact Resistance | ≤0.5mΩ | |
| IP Grade | IP54 | |
| Contact Progression | Three cores, four cores, five cores, six cores, ten cores, fourteen cores, twenty cores, thirty cores | |
| Mechanical Life | 500times | |
| Plugs and sockets can be equipped with needles or holes | ||
Features
- The shell is made of aluminum alloy die-casting, and the surface is high-voltage electrostatic spray.
- The plug and the switch are made into an interlocking structure, and the plug can only be pulled out after the switch in the socket is disconnected.
- Steel pipe or cable wiring.
Summary
This is an explosion-proof plug-in device with strong safety performance. It is small in size, designed to fit the actual situation, and high-strength materials ensure the life of the product. This is a new technology that conforms to the development of the electrical industry and has considerable improved performance. It can be used in high-pressure environments. Escort for electrical safety.
