Integration Slip Ring —360°Rotating -high reliability
–An Expert of Slip Ring
Description
▲ Integration Slip Ring combines multiple slip ring and rotary joints together in one package to transmitting various media such as electric power electrical signal, radio frequency, optical fiber, liquid, gas, etc.
Features
◆ Compact size，save install space and weight
◆ well protection to delicate fiber optic joint and RF Rotary Joint
◆Each rotary joint can be integrated in axial or radial direction according to the system space, or can also be made into an unity structure.
◆ Realizing the independent disassemble to each rotary joint, easy to repair, maintenance or replacement.
(For parameters of each different rotary joints, please reference to involved datasheet.
Optic-electric
RF-electric
Integrated slip ring is an initiated stacked unit in domestic industry, transmitting various signals, such as strong current, Gigabit Ethernet, RS422, Rotary transformer signal, Excitation signal, SPL video signal, and HD-SDI, as well as gas and liquid at one time.Three parts of gas/liquid, strong electric signal, and weak electric signal are transmitted independently with high reliability. Besides stable transmission of 1080P@30Hz HD video signal, it can also adapt to harsh working environment with wide working temperature range(-40~+70℃). It has been perfectly used for military electro-optical radar in remote-controlled liquid cleaning, air drying, and video surveillance, etc.
Typic Application

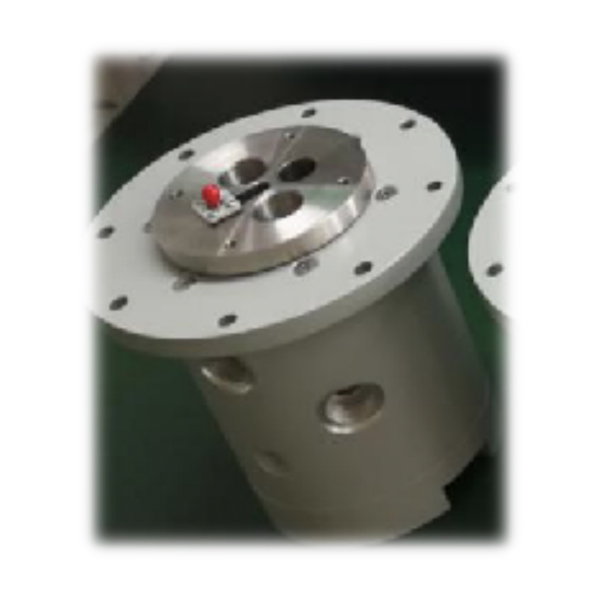

Fluid-Optic
◆ Radar System
◆ Weapon System
◆ View aim system
◆ Industry equipment
Military Quality Fine Works

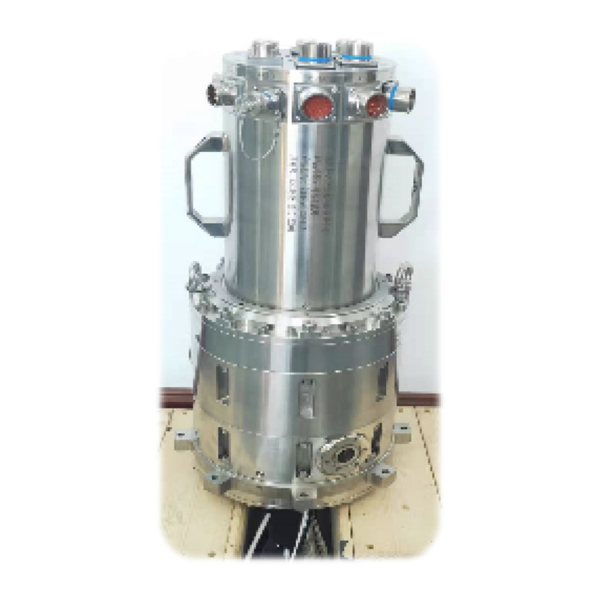

RF-electric-fluid Integration

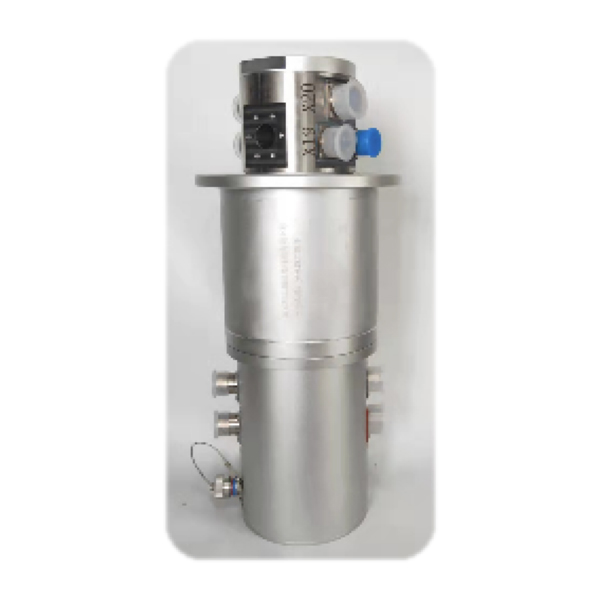

Optic-RF-electric Integration
Optic-RF-electric Integration
Let Rotation be Free
Professional technical engineer dedicated to guide you
According to your actual needs, choose the most reasonable overall design and planning procedures
