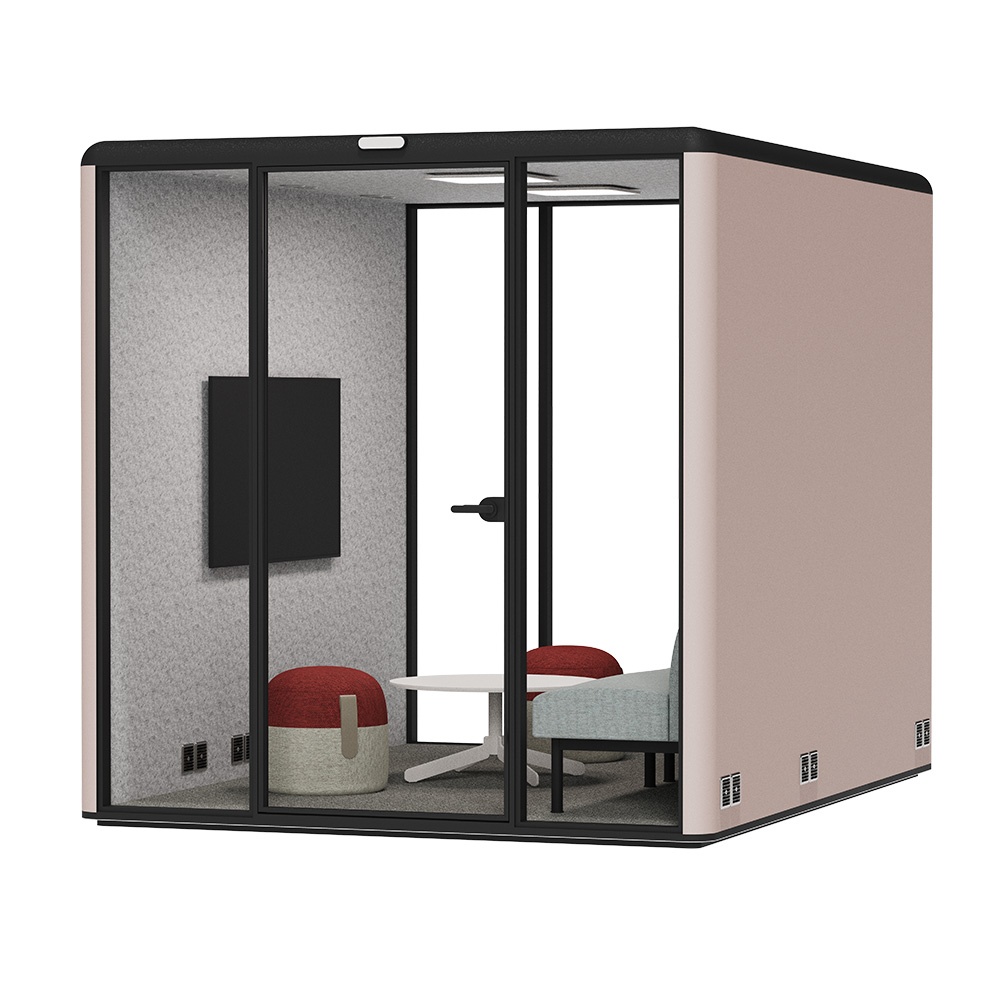

Sound-Proof Booth for 6 Person – CM-P6L

Introduction

External dimensions: W2200*D2870*H2280mm

Internal dimensions: W2030*D2700(2850 is glass to glass)*H2130 mm

Weight: 900kg

Pallet dimensions: W2240*D1200*H1040 x2 pallets(not included accessory box)

Volume: 6.5 m³

Door opening direction; Door closer: Left door

Product Details

Product Tags

Size Specification

External dimensions W2200*D2870*H2280mm
Internal dimensions W2030*D2700(2850 is glass to glass)*H2130 mm
Weight 900kg
Pallet dimensions W2240*D1200*H1040 x2 pallets(not included accessory box)
Volume 6.5 m³
Door opening direction Door closer Left door

Material

Frame 6063 aviation aluminum alloy
Glass 10mm ultra white tempered glass , 4+4 laminated door glass
Wall 6063 aviation aluminum alloy +1.0mm steel surface/Gabriel upholstery + acoustic package + 13mm  polyester panel + G350 noise-reducing fabric
Roof 6063 aviation aluminum alloy + 1.0mm steel surface + acoustic package + polyester panel + G350  noise-reducing fabric
Bottom plate E0 level 25+9mm solid wood plywood + black PVC edge banding + steel frame +25mm adjusting feet + polyester carpet
Coating TIGER powder electrostatic spraying
Furniture
Sofa: W2700*D600
Power Configuration
1 integrated socket
(2AC、1USB、1Type-c)
AC 220V,USB 5V3.1A

Parameter Configuration

Consumption 60W, electrical appliances access less than 2000W
Ceiling light 0 – 30W
Wall fan 0.9W, 1500rpm *6
Roof fan 2.4W, 1800rpm*6
Ventilation 9.4m³/min, 332CFM, air change rate 52/h
Noise reduction DS,A 28.5 dB (IS0 23351-1:2020)

Our Strengths

i.Modular design: Modular for fast assembly,with six components and quick assembly.1 hour assembly Easy to put in Patented quick-assembly connector.
Modular for reorganization: One becomes two, two becomes more; Modular for reorganization; Multi-function reset.
ii.Noise reduction:Wall 45 dB; DS,A  28.5 dB Four elements of sound insulation and noise reduction.Dow DuPont virgin sealing strip;Framed glass doors; Automotive manufacturing grade sealing performance.1.0 thickness steel panel + Acoustic package + aviation 6063 aluminum alloy + 4mm 1800g Polyester fiber sound insulation panels +9mm 1200g Polyester fiber acoustic panel + wool-like top layer.
iii.Optimal ventilation: Dual air circulation system Double air supply and double exhaust 1.5 minutes indoor circulation Ventilation volume per minute: 1.63/m³; Non-combustible ultra-quiet exhaust fan:100,000 h.
iv.Humanized design:soft light: Three seconds to light up+ Infinitely adjustable+Mitsubishi light guide 50,000h no change in color; Maximum luminous flux is 2700LM; imitation of natural light color temperature is is 3500K.
v.Sustainability: 100% environmentally friendly materials to cradle environmentally sustainable design concept. They are: GABRIEL fabric Tiger powder Aviation aluminum alloy FSC certified board 3C certified tempered glass Recycled polyester fiber.
vi.Digital Intelligence:
We can fulfill intelligent analysis of reservations, management, and release during busy hours. Provides a basis for decision making for resetting space.
a. Select space types (e.g. workstations, meeting rooms, etc.) for analysis.
b. Refine the space part (e.g. department, floor partition) to analyze and compare with other parts.
c. Understanding the usage habits and distribution of different spaces, departments, and areas through a hierarchical heat map.
d. Checking whether the space settings are suitable for the business model through leader research and employee questionnaire.
